Product specification

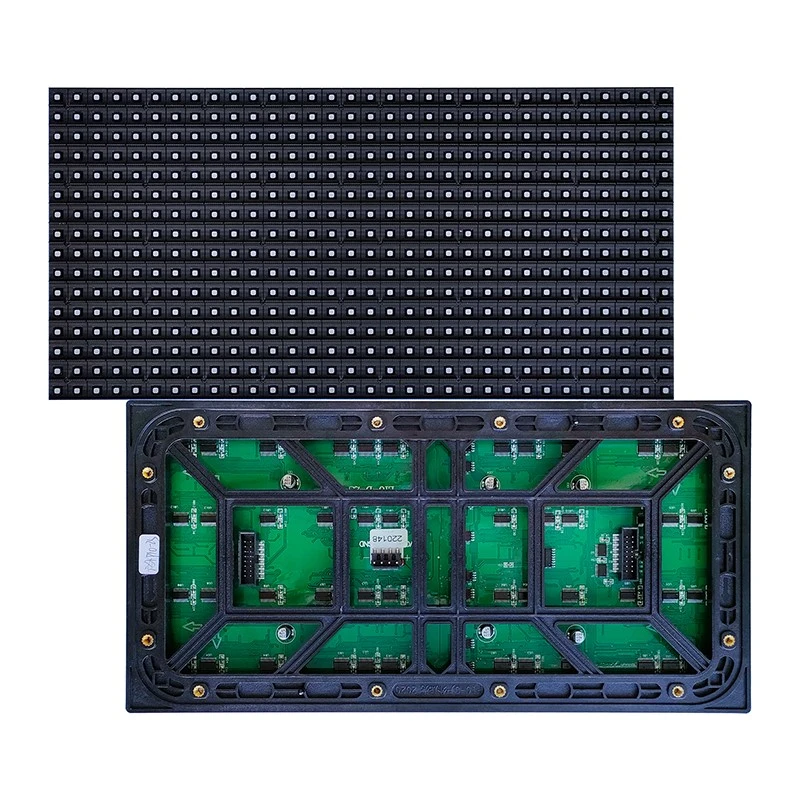

The Outdoor P5 ED display module is currently the mainstream product for small pitch displays, with a pixel pitch of 5 mm and a resolution of up to 40000 dots per square meter. Its modular design not only supports seamless splicing into various sizes of large screens, but also supports flexible customization, widely used in conference rooms, command centers, exhibition displays and other scenarios.

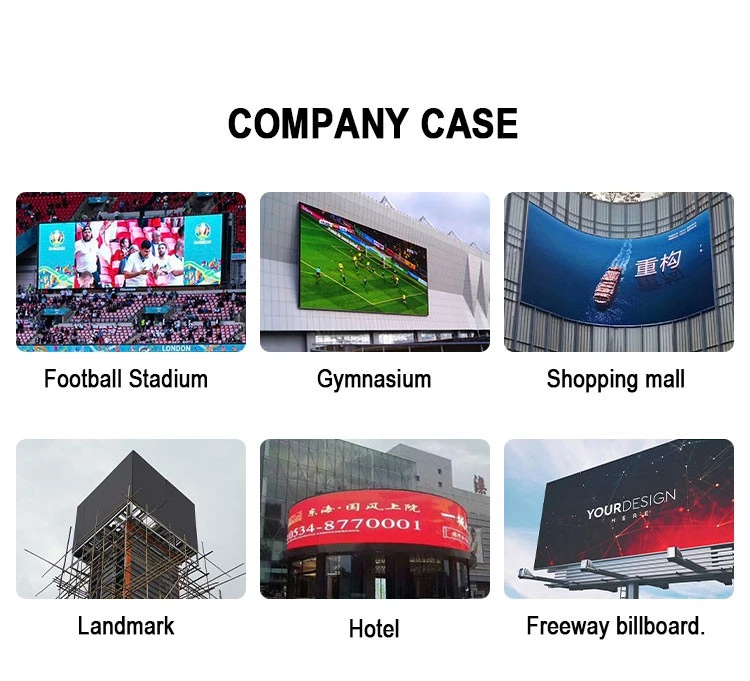

Common application scenarios: enterprises and education, medium and large conference rooms, multifunctional halls, academic lecture halls. Security and government affairs: monitoring center, command and dispatch hall, big data visualization center. Commercial display: car exhibition hall, high-end retail specialty store, enterprise exhibition hall background wall
Parameter
| Model: | Outdoor P5 LED display module |
| Chip: | SMD1921 |
| Module Size: | 320*160mm |
| Module resolution: | 64x32 pixels |
| Drive Scan: | 1/8 scan |
| Pixel density/sqm: 105625 pixels | 40000 pixels/SQM |
| IP rate: | IP65 |
| Brightness/sqm: | 4500 nits |
| View Angle(H/N): | 160/160 |
| Input Voltage: | 100~240V, 50/60HZ |
| Frame Frequency: | > 60 Hz |
| Refresh rate: 3840HZ/7680HZ | 1920HZ/3840HZ/7680HZ |
| Lifespan: 100000 hours | 100000 hours |
| MTBF(Mean time between failures): | 10000 hours |
| Working temperature: | -20℃~ +65 ℃ |
| Humidity: 10% ~ 95% | 10% ~ 95% |
| Brightness control: | 255 degree by software |
| Color Processing: | (1024)×G(1024)×B(1024) |
| Control method: | Synchronous/Asynchronous |
| Software brand: | Novastar, Huidu, Colorlight, Mooncell or Linsn |
FAQ
How to repair it if it breaks?
If you have any problems, contact us at any time, remotely troubleshoot, solve small problems remotely, send accessories directly for hardware problems, and replace them simply without professional technology.
Is it easy to disassemble and assemble? Is it suitable for stage rental?
With quick lock design, super fast disassembly and assembly, stable splicing, suitable for stacking and hanging, no problem in repeated use of performance rental.
Can I rent and sell dual-use?
Yes, it can be used for temporary stage rental and long-term fixed installation, which is very cost-effective.
Can the brightness be adjusted automatically? Will it be too bright at night to disturb the people?
You can install a light sensor probe, which automatically increases the brightness during the day and automatically lowers it at night, without hurting the eyes, disturbing the people, and without manual adjustment every day.
Will the humid salt spray on the beach rust and break the screen?
The cabinet design is die-casting aluminum, and the module is moisture-proof and glue-filled, which can be used normally by the seaside and rainy and humid areas, and is not easy to rust and dampen the lamp.
What lamp beads, power supply, and IC are used?
It is equipped with a first-line outdoor lamp bead + high-brush constant current driver IC + brand rainproof power supply, and the materials used are all engineering-grade configurations, with good stability, slow brightness decay and longer life.
