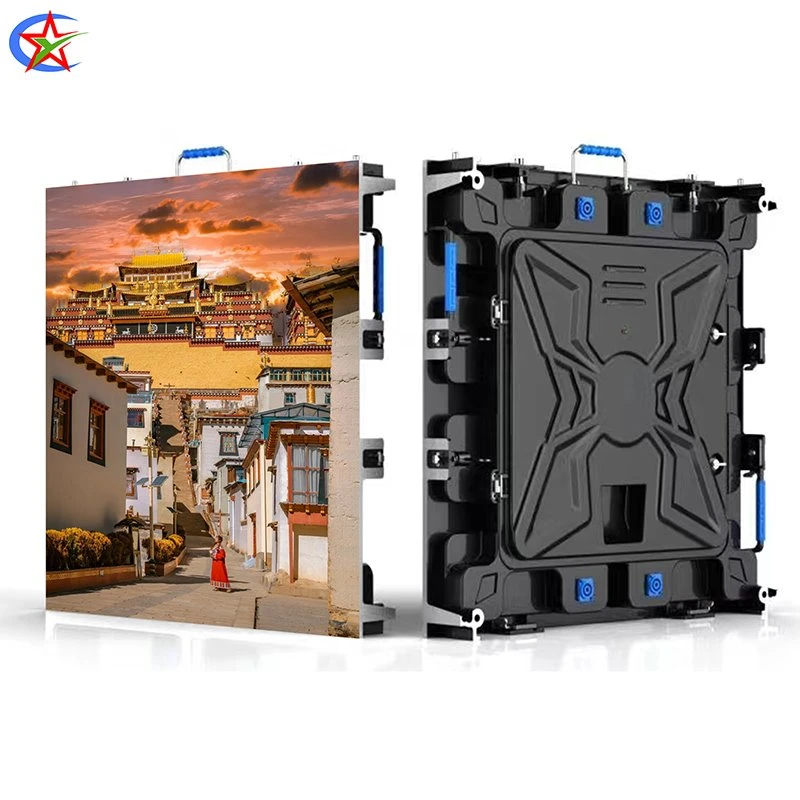

Product specification
| Product Name | P3.076 indoor rental led matrix display | Input Voltage | 100~240V, 50/60HZ |
| LED arrange | SMD2121 1R1G1B | Frame Frequency | > 60 Hz |
| Module size | 320x160 mm | Gray Scale/bit | 16 bit |
| Module resolution | 104x52 pixels | Refresh rate | 3840HZ/7680HZ |
| Drive Scan | 1/26 scan | Lifespan | 100000 hours |

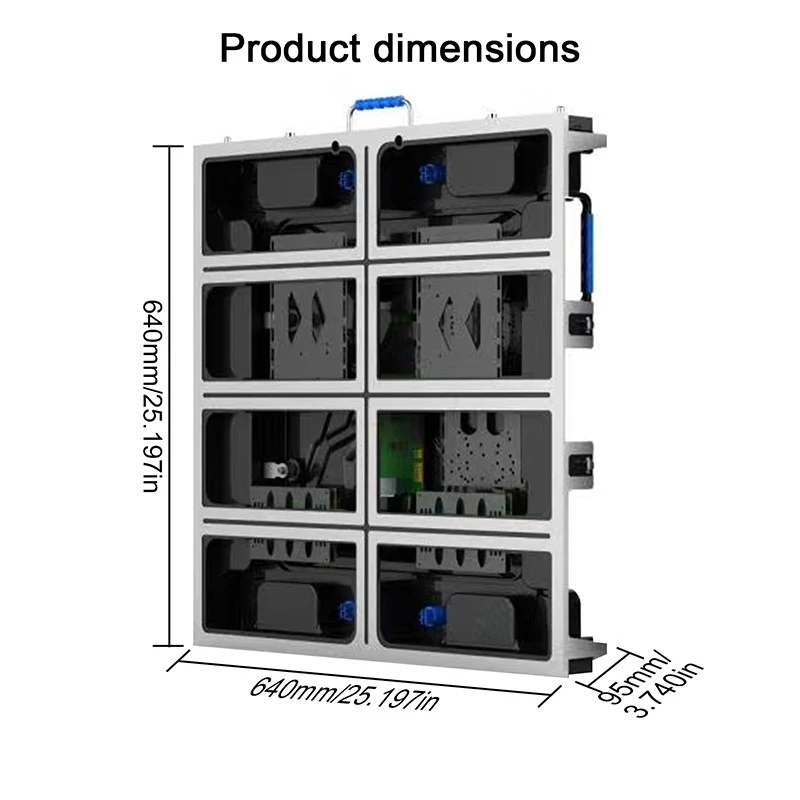

| Cabinet size | 640x640mm | MTBF(Mean time between failures) | 10000 hours |
| Cabinet resolution | 208x208 pixels | Working temperature | -20℃~ +65 ℃ |
| Weight | 11 KGS | Humidity | 10% ~ 95% |
| Pixel density/sqm | 105625 pixels | Brightness control | 255 degree by software |
| IP rate | IP43 | Color Processing | (1024)×G(1024)×B(1024) |
| Power consumption/sqmt | Average: 120W Maximun: 300W | Control method | Synchronous/Asynchronous |
| Brightness/sqm | 500 nits | Software brand | Novastar, Huidu, Colorlight, Mooncell or Linsn |
| View Angle(H/N) | 160/160 |
Product Features
1. Heat dissipation optimization: Cabinet designed with convection heat dissipation holes, passive cooling without a fan, reduces failure points, dust-proof and noise reduction
2. Flatness optimization: Module with positioning pins, magnetic installation, seams ≤0.5mm, entire screen free of waves or noticeable seams
3.Color gamut calibration: Factory-calibrated brightness and color temperature point by point for each screen, no color difference, no blotchiness
4. Gray scale enhancement: 16-bit gray scale, retains dark scene details, makes promotional videos and logos look more premium
5. Compatibility: Supports 4K input, seamless switching between video/image/live broadcast, compatible with mobile phones, computers, and set-top boxes simultaneously
6.Compatible with mainstream control systems such as Novastar, Huidu, Colorlight, etc. Synchronous/asynchronous control is supported.
7. Small splicing gaps, seamless images,suitable for large screen display
Our Service
Production Process
Packing and shipping
LED screen control system
Cooperation
FAQ
How to repair it if it breaks?
If you have any problems, contact us at any time, remotely troubleshoot, solve small problems remotely, send accessories directly for hardware problems, and replace them simply without professional technology.

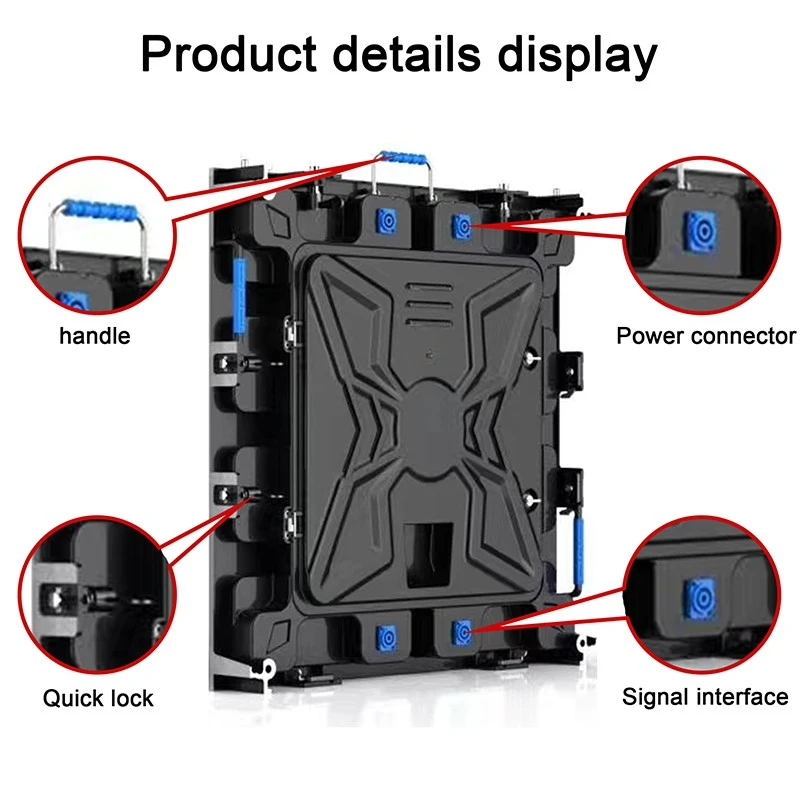

Is it easy to disassemble and assemble? Is it suitable for stage rental?
With quick lock design, super fast disassembly and assembly, stable splicing, suitable for stacking and hanging, no problem in repeated use of performance rental.
Can I rent and sell dual-use?
Yes, it can be used for temporary stage rental and long-term fixed installation, which is very cost-effective.
What lamp beads, power supply, and IC are used?
It is equipped with a first-line outdoor lamp bead + high-brush constant current driver IC + brand rainproof power supply, and the materials used are all engineering-grade configurations, with good stability, slow brightness decay and longer life.
What is the refresh rate? Will there be water ripples when taking pictures?
High refresh rate of 3840Hz or above, mobile phone photos without flicker and water ripples, smooth video playback without smearing, and it is enough for live broadcasts and performances.
Is it pre-maintenance or post-maintenance?
It supports both front and rear maintenance, can be installed against the wall or against the wall, and does not need to disassemble the entire screen to replace the module, power supply, and receiver card in the later stage, which is particularly convenient for maintenance.
