Product specification
| Product Name | P4 Outdoor Curved flexible led display | Input Voltage | 100~240V, 50/60HZ |
| LED arrange | SMD1921 1R1G1B | Frame Frequency | > 60 Hz |
| Drive Scan | 1/10 scan | Gray Scale/bit | 16 bit |
| Module size | 320x160mm | Refresh rate | 1920HZ/3840HZ/7680HZ |
| Module resolution | 80x40 pixels | Lifespan | 100000 hours |
| Cabinet size | customized | MTBF(Mean time between failures) | 10000 hours |
| Weight | 35 KGS/ sqm | Working temperature | -20℃~ +65 ℃ |
| Pixel density/sqm | 62500 pixels | Humidity | 10% ~ 95% |
| IP rate | IP65 | Brightness control | 255 degree by software |
| Power consumption/sqmt | Average: 400W Maximun: 1000W | Color Processing | (1024)×G(1024)×B(1024) |
| Brightness/sqm | 4000-4500 nits | Control method | Synchronous/Asynchronous |
| View Angle(H/N) | 160/140 | Software brand | Novastar, Huidu, Colorlight, Mooncell or Linsn |
Product Features

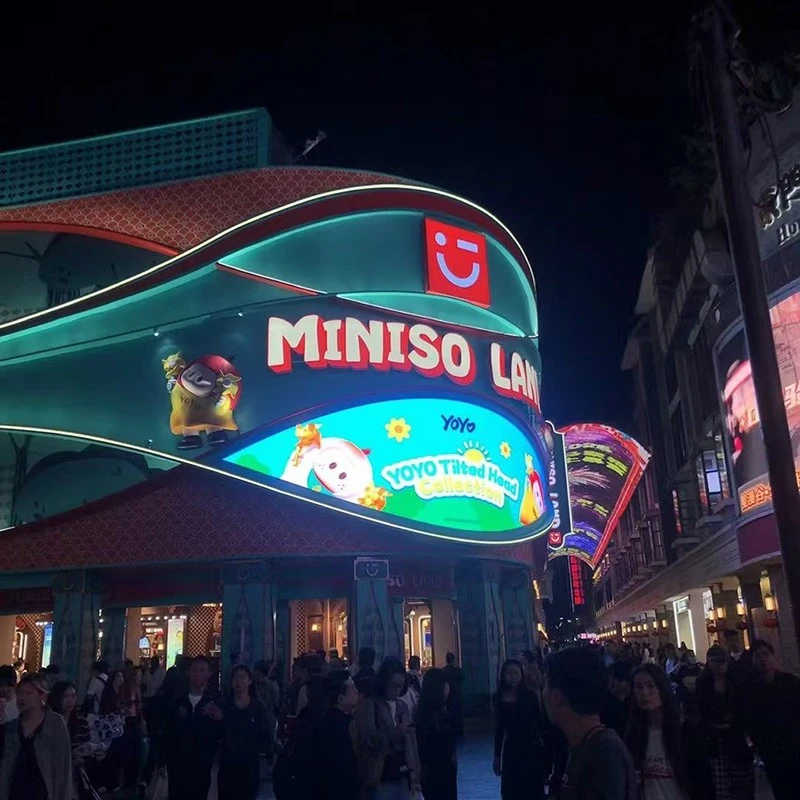

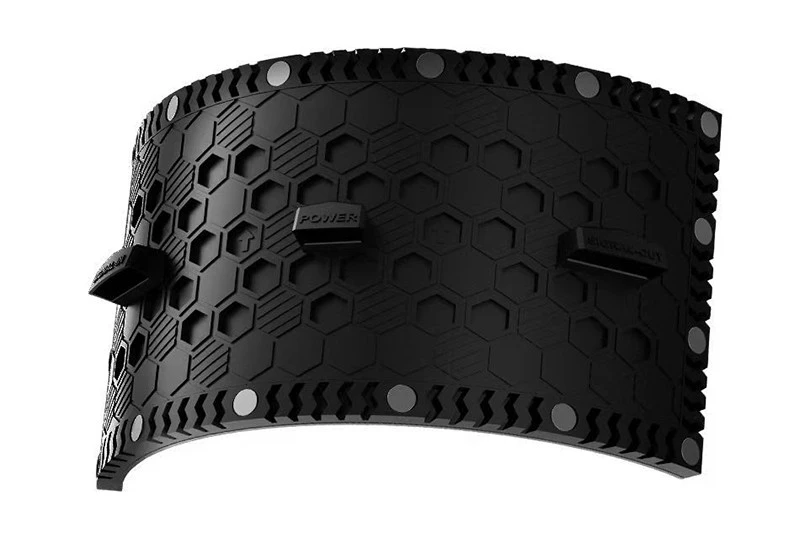

1.Curved & Flexible Design: Seamless splicing for various creative curved shapes (convex, concave, cylinder). Perfectly fits various curved building surfaces, enabling seamless splicing and breaking the design limitations of traditional hard screens.
2.It helps end customers create visually striking "city landmarks" or creative advertisements, enhancing their ability to attract attention and attract traffic; At the same time, it reduces the high structural modification costs caused by irregular construction.
3.Crystal-clear visibility under direct sunlight, robust resistance to heavy rain, dust, and extreme weather. Images remain clear even under strong direct light; With powerful waterproof and dustproof performance, it can easily handle harsh weather conditions such as heavy rain and blizzards.
4.Ensures advertisers' ads are perfectly displayed around the clock and seasons, maximizing ad monetization; High protection reduces after-sales repair rates and saves expensive labor costs for outdoor high-altitude maintenance.
5.Decades of stable operation, plug-and-play setup, and highly flexible sync/async control. Minimize long-term operational risks, secure higher ROI, and simplify technical management.
Our Service
Production Process
Packing and shipping
LED screen control system
Cooperation
FAQ
1.What lamp beads, power supply, and IC are used?
Answer: It is equipped with a first-line outdoor lamp bead + high-brush constant current driver IC + brand rainproof power supply, and the materials used are all engineering-grade configurations, with good stability, slow brightness decay and longer life.
2.Can you customize any size?
Answer: Yes, the standard box is spliced, the length and width can be customized, and the door head can be made horizontally, vertically and squarely.
3. Can this P4 LED screen survive heavy rain?
Yes, with an IP65 weatherproof rating. Completely dustproof and can withstand all-round spray impact, adapting to extreme cold and hot environments. There is no need to worry about heavy rain, sand, or extreme weather.
4.How long does it take to ship and pack an order?
A: We will need around 15 days to produce and test the screen before packing.
5.Is it OK to connect directly to 220V household electricity?
Answer: A small area can be directly used for 220V household use; It is recommended to use three-phase electricity for more than 10 square meters, which is more stable and more balanced.
6.What lamp beads, power supply, and IC are used?
Answer: It is equipped with a first-line outdoor lamp bead + high-brush constant current driver IC + brand rainproof power supply, and the materials used are all engineering-grade configurations, with good stability, slow brightness decay and longer life.
