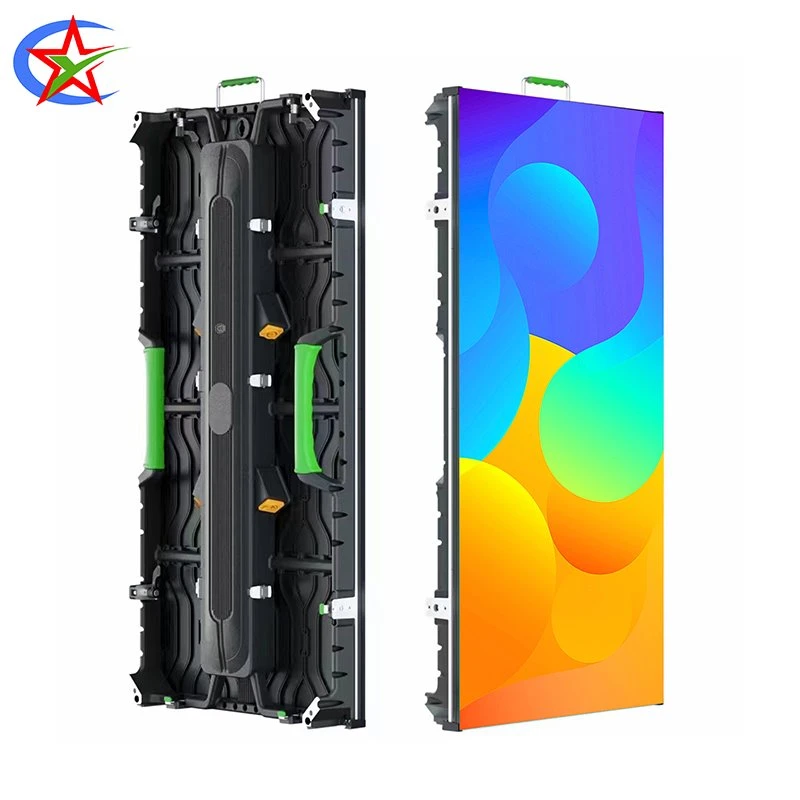

Product specification
| Product Name | P4.81 outdoor video wall led | Input Voltage | 100~240V, 50/60HZ |
| LED arrange | SMD1921 1R1G1B | Frame Frequency | > 60 Hz |
| Module size | 250x250mm | Gray Scale/bit | 16 bit |
| Module resolution | 52x52 pixels | Refresh rate | 1920HZ/3840HZ/7680HZ |
| Drive Scan | 1/13 scan | Lifespan | 100000 hours |

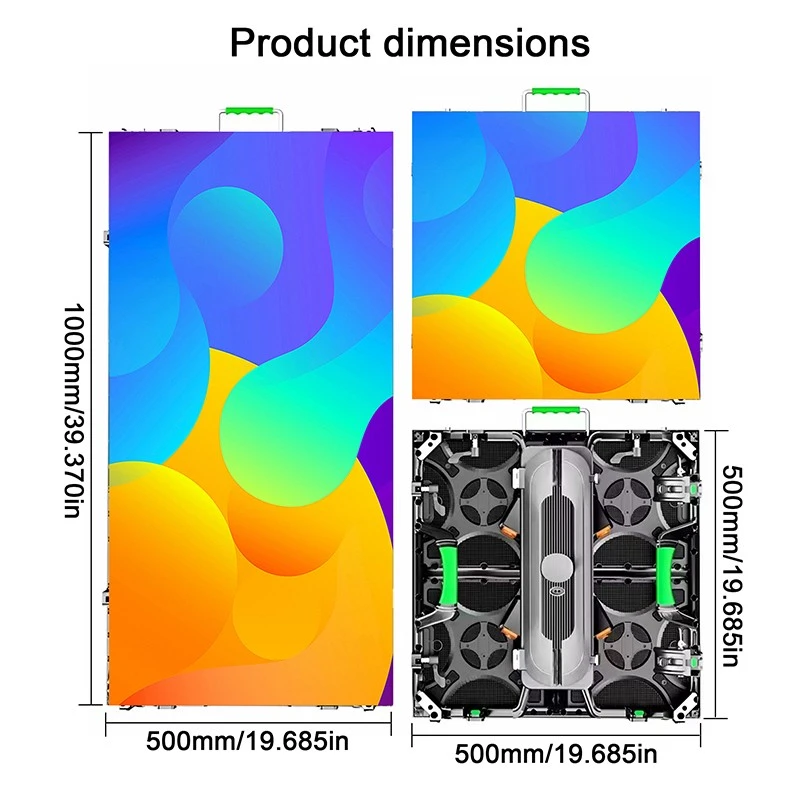

| Cabinet size | 500x1000mm/500x500mm | MTBF(Mean time between failures) | 10000 hours |
| Cabinet resolution | 104x208 pixels | Working temperature | -20℃~ +65 ℃ |
| Weight | 13.5 KGS | Humidity | 10% ~ 95% |
| Pixel density/sqm | 43264 pixels | Brightness control | 255 degree by software |
| IP rate | IP65 | Color Processing | (1024)×G(1024)×B(1024) |
| Power consumption/sqmt | Average:320W Maximun:800W | Control method | Synchronous/Asynchronous |
| Brightness/sqm | 4500-5000 nits | Software brand | Novastar, Huidu, Colorlight, Mooncell or Linsn |
| View Angle(H/N) | 160/160 |
Product Features

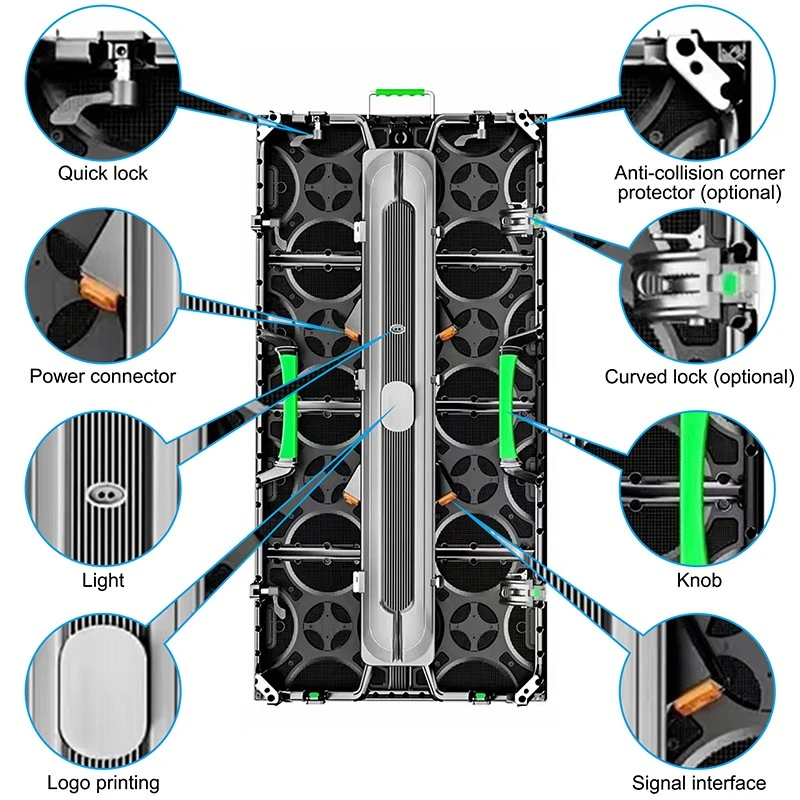

A. The cabinet is a regular rental cabinet, supporting front and rear maintenance indoors and rear maintenance outdoors.
B.Ultra-light and ultra-thin design, greatly reducing transportation and installation load.

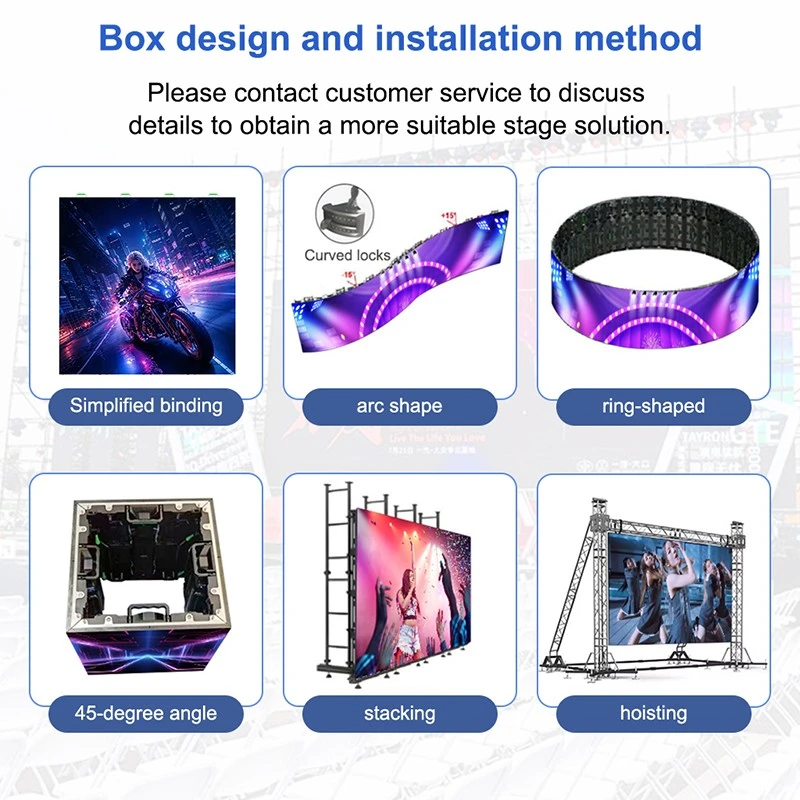

C. 500x500 / 500x1000 cabinets are fully compatible for connection in all directions (top, bottom, left, and right).
D. Straight-edge cabinets and curved cabinets can be directly connected without changing locks, improving assembly efficiency.
E. Supports inner and outer arc cylindrical shape connections to meet creative requirements.
Our Service
Production Process
Packing and shipping
LED screen control system
Cooperation
FAQ
① Optimal viewing distance for P4.81 outdoor video wall led?
4-30 meters, ideal main visual configuration for medium to large stages
② Will it flicker during live broadcast/filming?
Refresh rate 3840Hz or 7680HZ, no moire when photographing, no flicker during live broadcast, excellent on-camera effect.
③ Can it be used in the rain?
Front IP65 waterproof, usable in light rain or outdoor environments, for heavy rain, simple coverage is recommended.
④ Is the brightness enough? Can it be seen clearly in daylight?
Brightness 4500-5000 nits/㎡, supports automatic dimming, not gray in daylight, not dazzling at night.
⑤ How long is the screen lifespan?
With normal maintenance: 5-10 years; for high-frequency rental scenarios: 3-5 years of stable display performance.
