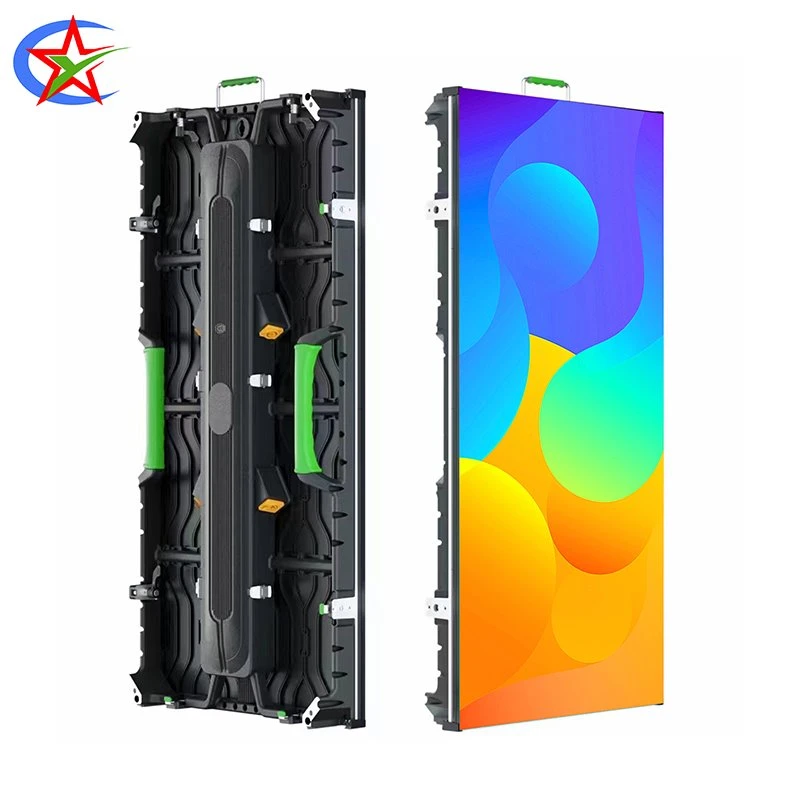

Product specification
| Product Name | large outdoor led screen P2.976 | Input Voltage | 100~240V, 50/60HZ |
| LED arrange | SMD1415 1R1G1B | Frame Frequency | > 60 Hz |
| Module size | 250x250mm | Gray Scale/bit | 16 bit |
| Module resolution | 84x84 pixels | Refresh rate | 1920HZ/3840HZ/7680HZ |
| Drive Scan | 1/21 scan | Lifespan | 100000 hours |

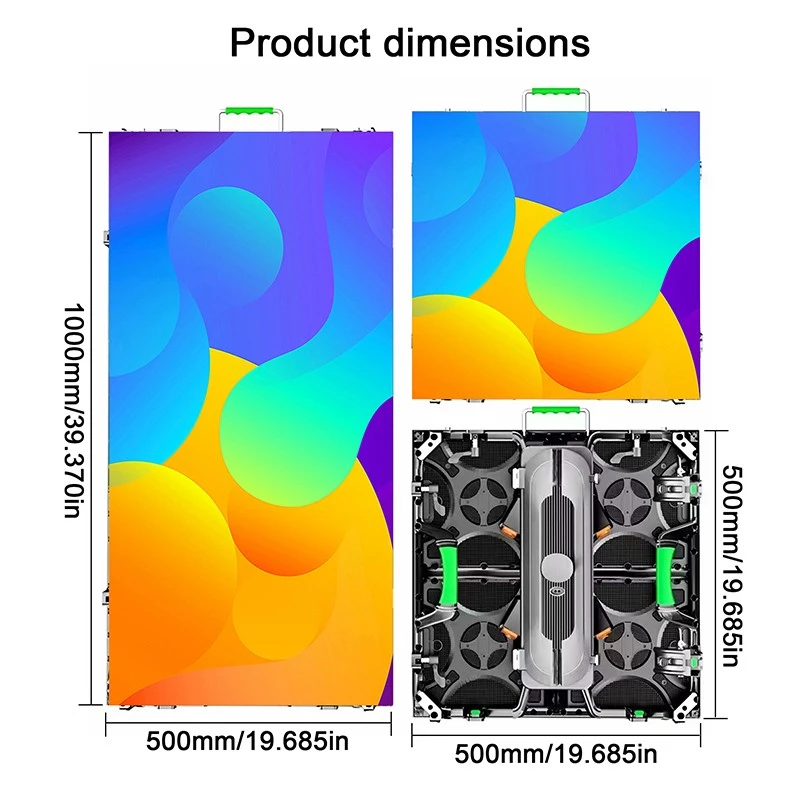

| Cabinet size | 500x1000mm/500x500mm | MTBF(Mean time between failures) | 10000 hours |
| Cabinet resolution | 168x336 pixels/168x168 pixels | Working temperature | -20℃~ +65 ℃ |
| Weight | 14 KGS/ 9.5 KGS | Humidity | 10% ~ 95% |
| Pixel density/sqm | 112896 pixels | Brightness control | 255 degree by software |
| IP rate | IP65 | Color Processing | (1024)×G(1024)×B(1024) |
| Power consumption/sqmt | Average: 320W Maximun: 800W | Control method | Synchronous/Asynchronous |
| Brightness/sqm | 4300 nits | Software brand | Novastar, Huidu, Colorlight, Mooncell or Linsn |
| View Angle(H/N) | 160/160 |

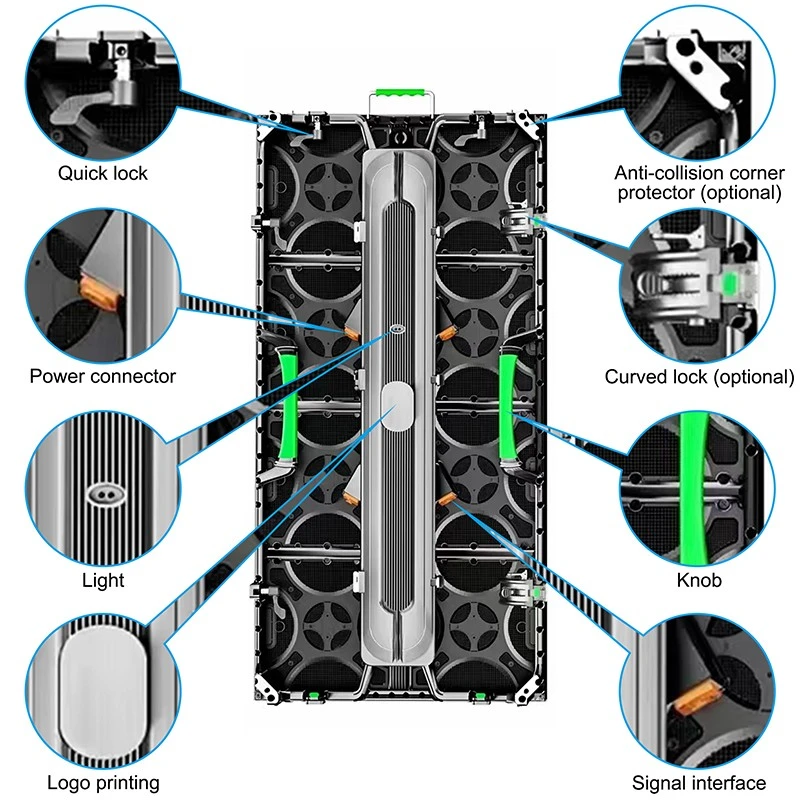

Product Features
A. supporting front and rear maintenance indoors and outdoors.
B.Light weight Aluminum design, greatly reducing transportation and installation load.

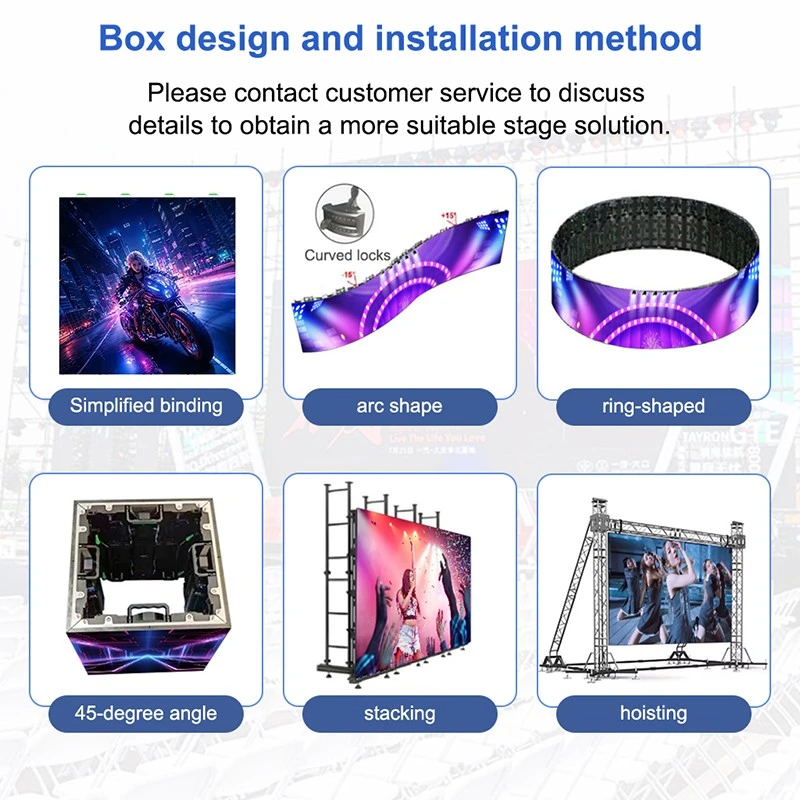

C. 500x500 / 500x1000 cabinets are fully compatible for connection in all directions (top, bottom, left, and right).
D. Different design cabinets such as curved, 45 degree, flexible can be directly connected without changing locks, improving assembly efficiency.
E. Supports inner and outer arc cylindrical shape connections to meeting creative stage design needs.
Our Service
Production Process
Packing and shipping
LED screen control system
Cooperation
FAQ
Is the power consumption high?
The maximum power is about 800W/㎡, actual operation is only 320W/㎡, smart power saving is more cost-effective.
How long is the screen lifespan?
With normal maintenance: 5-10 years; for high-frequency rental scenarios: 3-5 years of stable display performance.
Applicable scenarios?
Outdoor concerts, music festivals, press conferences, weddings, roadshows, sports events, exhibitions, commercial activities, etc.
Is transportation convenient?
Lightweight aluminum cabinet, standard flight case, stackable transportation, drop-resistant and collision-proof.
Is maintenance troublesome?
Single module quick replacement, front and rear maintenance convenient, low failure rate, worry-free and stable.
