Product specification
| Product Name | P3.91 indoor led wall for church | Input Voltage | 100~240V, 50/60HZ |
| LED arrange | SMD2121 1R1G1B | Frame Frequency | > 60 Hz |
| Module size | 250x250mm | Gray Scale/bit | 16 bit |
| Module resolution | 64x64 pixels | Refresh rate | 3840HZ/7680HZ |
| Drive Scan | 1/16 scan | Lifespan | 100000 hours |

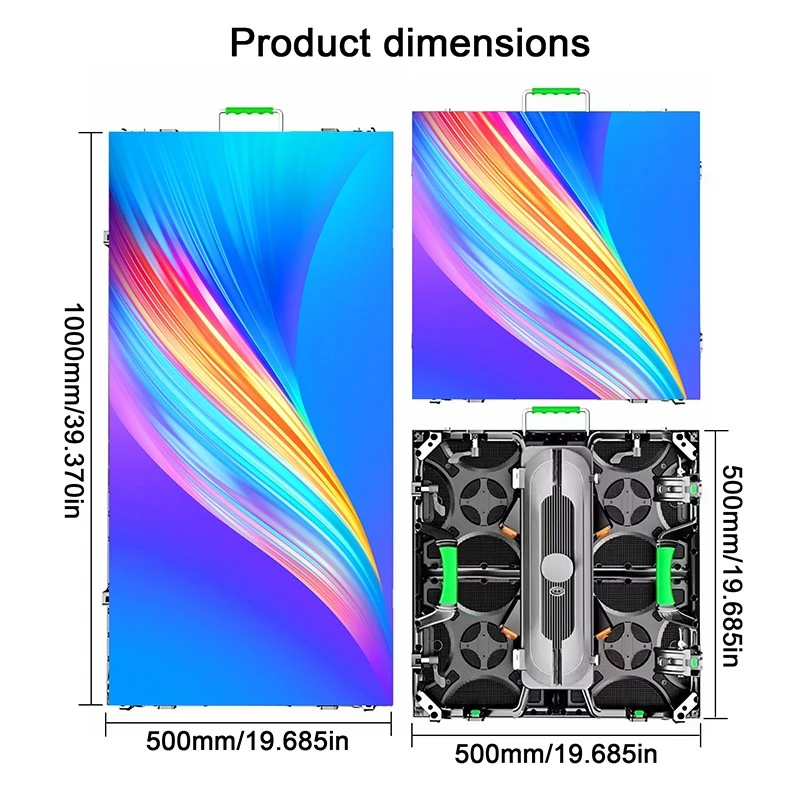

| Cabinet size | 500x1000mm/500x500mm | MTBF(Mean time between failures) | 10000 hours |
| Cabinet resolution | 128x256 pixels/128x128 pixels | Working temperature | -20℃~ +65 ℃ |
| Weight | 12.5 KGS/ 8.5 KGS | Humidity | 10% ~ 95% |
| Pixel density/sqm | 65536 pixels | Brightness control | 255 degree by software |
| IP rate | IP43 | Color Processing | (1024)×G(1024)×B(1024) |
| Power consumption/sqm | Average: 320W Maximun: 800W | Control method | Synchronous/Asynchronous |
| Brightness/sqm | 600-700 nits | Software brand | Novastar, Huidu, Colorlight, Mooncell or Linsn |
| View Angle(H/N) | 160/160 |
Product Features

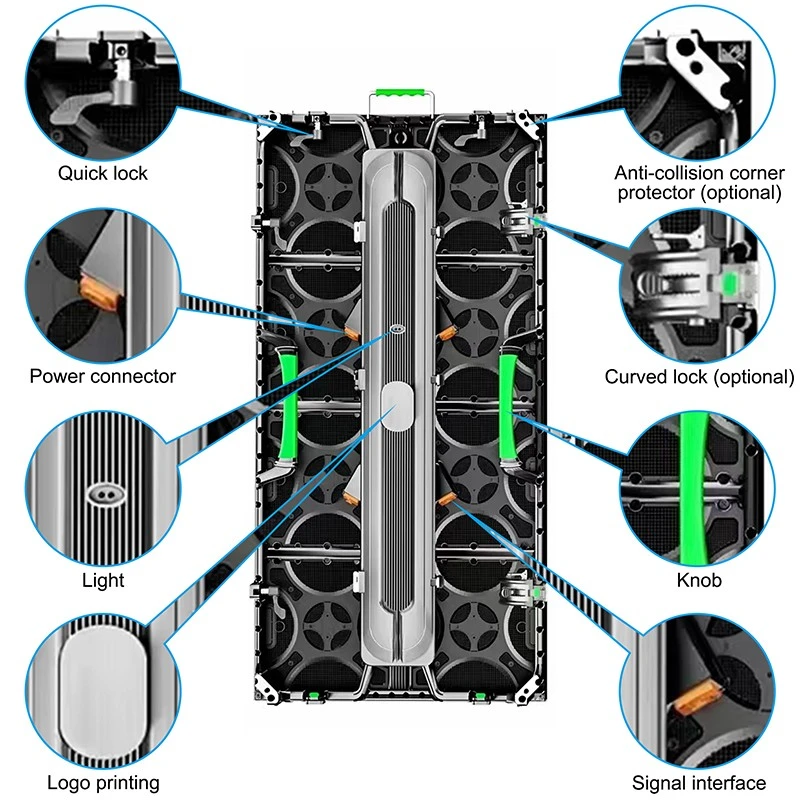

A. Supporting front and rear maintenance.
B.Ultra-light and ultra-thin design, greatly reducing transportation and installation load.
C. 500x500 / 500x1000 cabinets are fully compatible for connection in all directions (top, bottom, left, and right).
D. Straight-edge cabinets and curved cabinets can be directly connected without changing locks, improving assembly efficiency.
E. Supports inner and outer arc cylindrical shape connections to meet creative requirements.
F. Perfect performance on camera. Whether captured by audiences with smartphones or broadcast live by professional media, the image has no ripples (Moiré effect), making it ideal for high-end auto shows, corporate or government press conferences, and other occasions requiring extensive secondary dissemination.

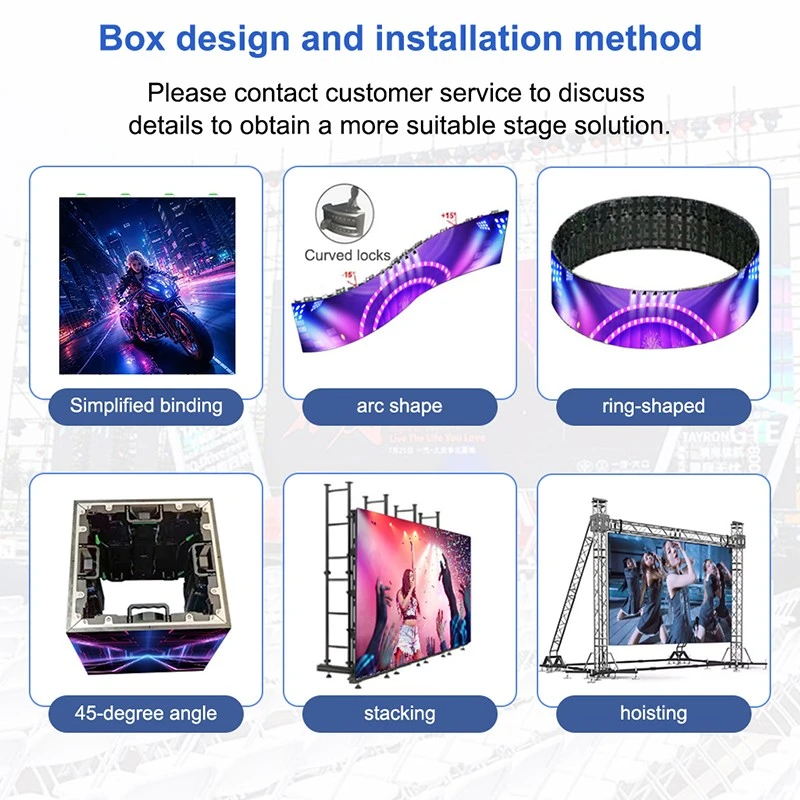

G. Floor standing, hanging or stacking installation. Flexible usage according to stage need.
H. Saves labor, time, and effort. The ultra-light design allows single-person installation, significantly reducing labor costs; flexible size combinations can meet various irregular stage construction needs.
Our Service
Production Process
Packing and shipping
LED screen control system
Cooperation
FAQ
Applicable scenarios?
Concerts, music festivals, press conferences, weddings, roadshows, sports events, exhibitions, commercial activities, etc.
How is the clarity?
Pixel density about 65,536 dots/㎡, high-definition level, delicate pictures without granular feeling.
Is it fast to set up and dismantle?
Quick-lock design, can be operated by one person, large screens of dozens of square meters can be set up in hours.
Are the seams big?
Seamless splicing, strong overall screen integration, no obvious black edges
Can it be curved/irregular shaped?
Supports curved installation, can be inner or outer curves, meeting creative stage design needs.
How long will need to produce and shipment?
We have large quantity in stock. We can ship within 7 days after receiving all payment. The lead time for shipment depends on the shipping method you choose.
