Product specification
| Product Name | P2.976 indoor led video wall display | Input Voltage | 100~240V, 50/60HZ |
| LED arrange | SMD2121 1R1G1B | Frame Frequency | > 60 Hz |
| Module size | 250x250mm | Gray Scale/bit | 16 bit |
| Module resolution | 84x84 pixels | Refresh rate | 3840HZ/7680HZ |
| Drive Scan | 1/28 scan | Lifespan | 100000 hours |

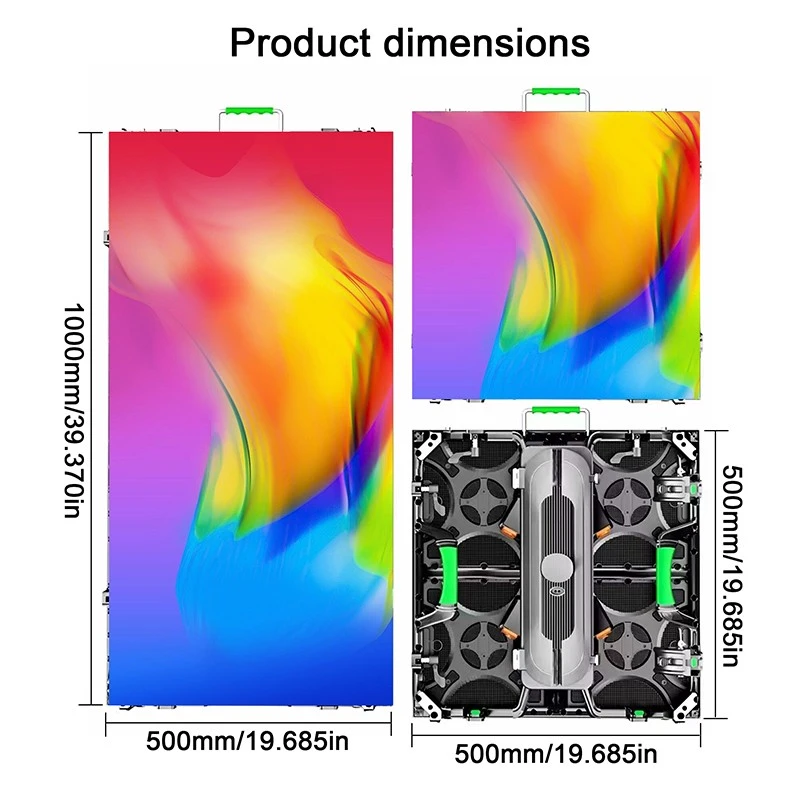

| Cabinet size | 500x1000mm/500x500mm | MTBF(Mean time between failures) | 10000 hours |
| Cabinet resolution | 168x336 pixels/168x168 pixels | Working temperature | -20℃~ +65 ℃ |
| Weight | 13 KGS/ 8.5 KGS | Humidity | 10% ~ 95% |
| Pixel density/sqm | 112896 pixels | Brightness control | 255 degree by software |
| IP rate | IP43 | Color Processing | (1024)×G(1024)×B(1024) |
| Power consumption/sqmt | Average: 320W Maximun: 800W | Control method | Synchronous/Asynchronous |
| Brightness/sqm | 500-600 nits | Software brand | Novastar, Huidu, Colorlight, Mooncell or Linsn |
| View Angle(H/N) | 160/160 |
Product Features

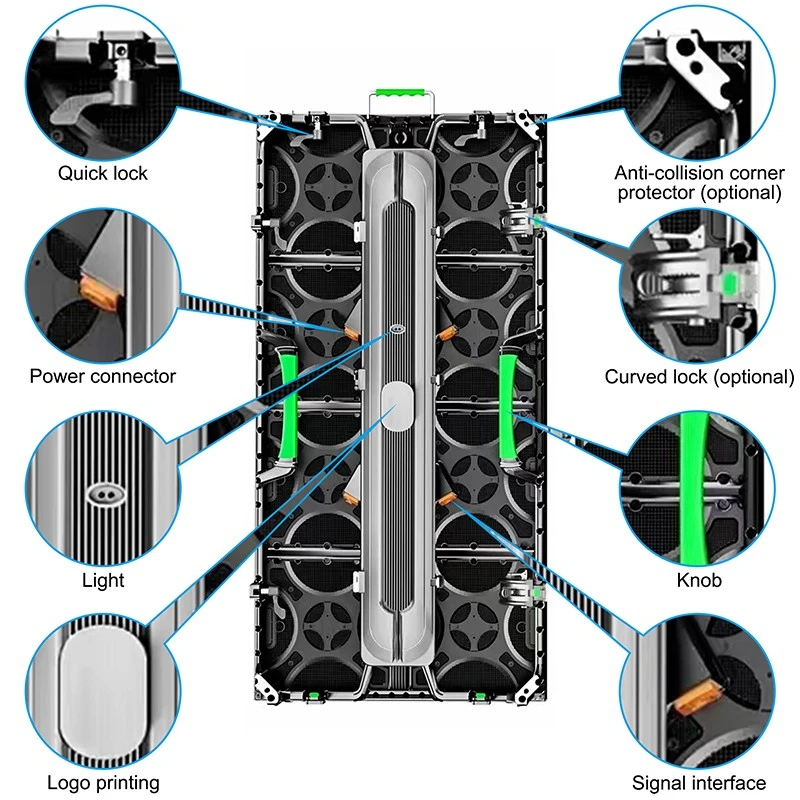

A. supporting front and rear maintenance indoors
B.Light weight Aluminum design, greatly reducing transportation and installation load.

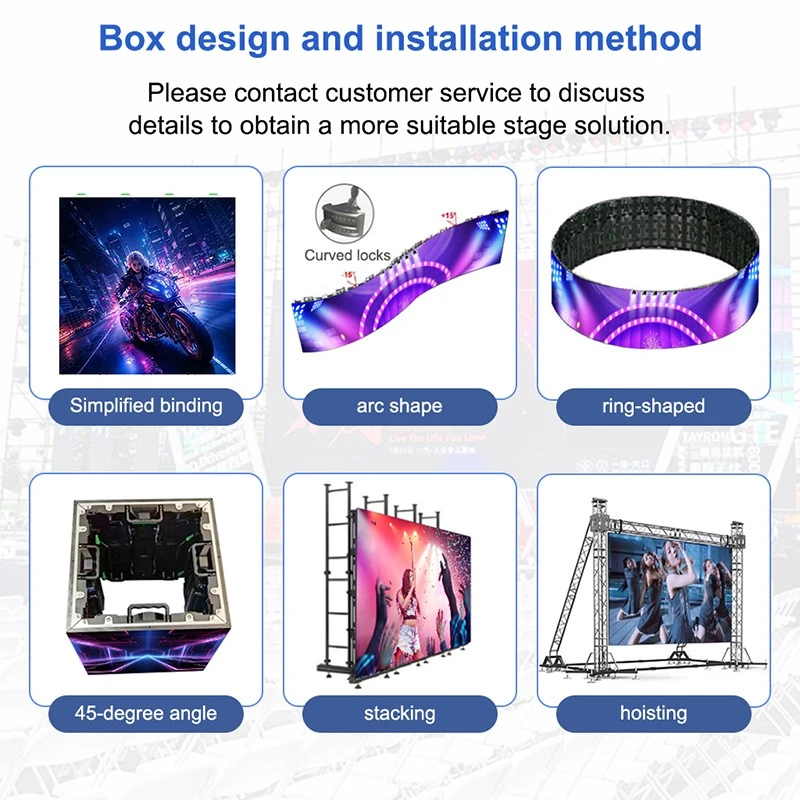

C. 500x500 / 500x1000 cabinets are fully compatible for connection in all directions (top, bottom, left, and right).
D. Different design cabinets such as curved, 45 degree, flexible can be directly connected without changing locks, improving assembly efficiency.
E. Supports inner and outer arc cylindrical shape connections to meeting creative stage design needs.
F. Perfect performance on camera. Whether captured by audiences with smartphones or broadcast live by professional media, the image has no ripples (Moiré effect), making it ideal for high-end auto shows, corporate or government press conferences, and other occasions requiring extensive secondary dissemination.

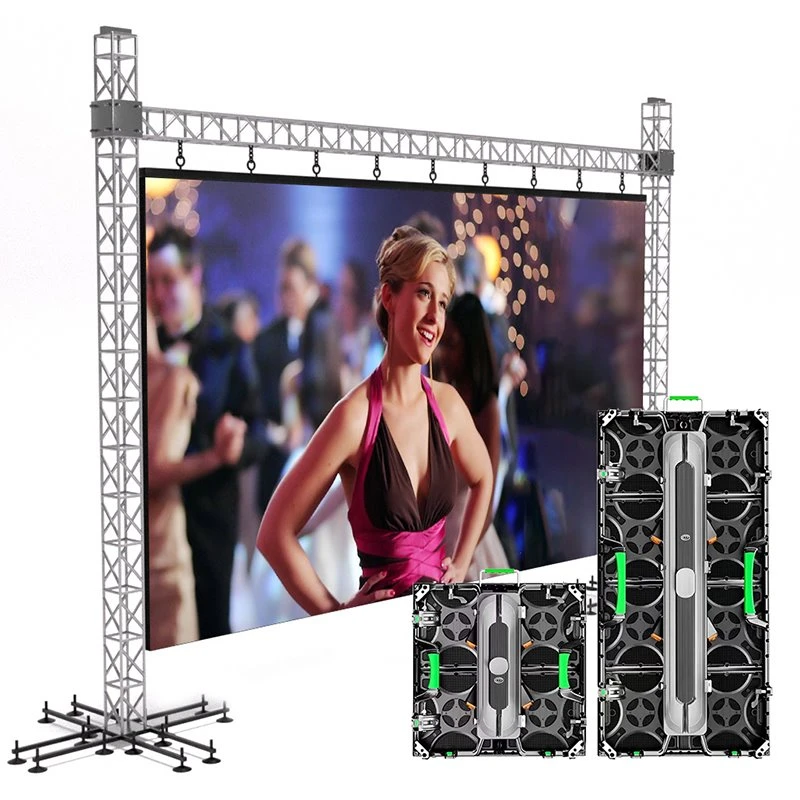

G. Floor standing, hanging or stacking installation. Flexible usage according to stage need.
H. Saves labor, time, and effort. The ultra-light design allows single-person installation, significantly reducing labor costs; flexible size combinations can meet various irregular stage construction needs.
Our Service
Production Process
Packing and shipping
LED screen control system
Cooperation
FAQ
Is the power consumption high?
The maximum power is about 800W/㎡, actual operation is only 320W/㎡, smart power saving is more cost-effective.
What should I do if I can't operate it?
Free remote teaching operations, send tutorials, video guidance, teach you step by step to change content, set up programs, and include teaching and meetings.
Is transportation convenient?
Lightweight aluminum cabinet, standard flight case, stackable transportation, drop-resistant and collision-proof.
Is maintenance troublesome?
Single module quick replacement, front and rear maintenance convenient, low failure rate, worry-free and stable.
Can the brightness be adjusted automatically? Will it be too bright at night to disturb the people?
Answer: You can install a light sensor probe, which automatically increases the brightness during the day and automatically lowers it at night, without hurting the eyes, disturbing the people, and without manual adjustment every day.
Can I rent and sell dual-use?
Yes, it can be used for temporary stage rental and long-term fixed installation, which is very cost-effective.
