Product specification
| Product Name | P2.604 outdoor rental led video wall | Input Voltage | 100~240V, 50/60HZ |
| LED arrange | SMD1415 1R1G1B | Frame Frequency | > 60 Hz |
| Module size | 250x250mm | Gray Scale/bit | 16 bit |
| Module resolution | 96x96 pixels | Refresh rate | 1920HZ/3840HZ/7680HZ |
| Drive Scan | 1/24 scan | Lifespan | 100000 hours |

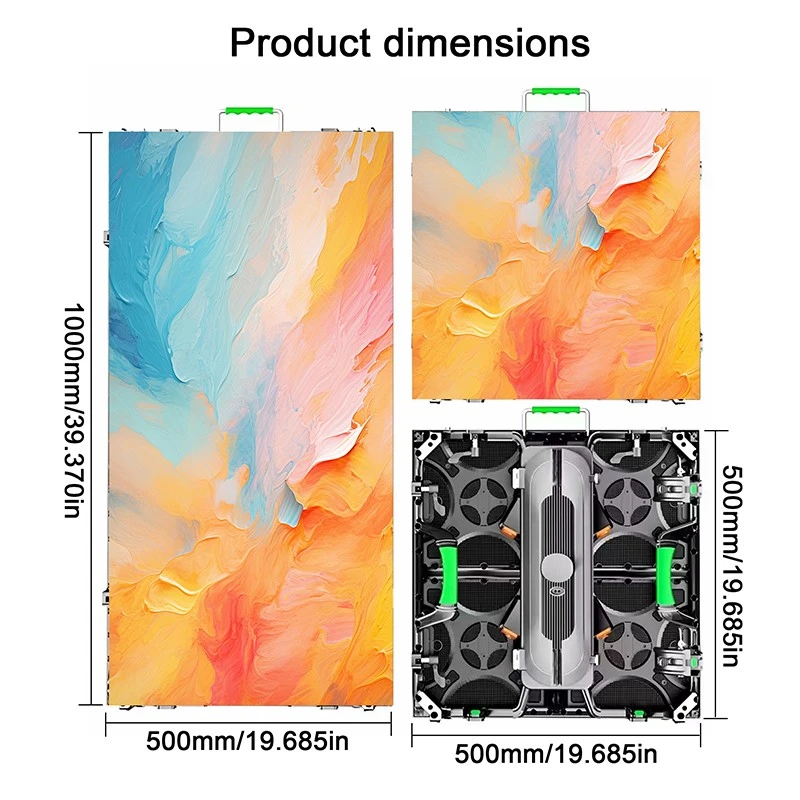

| Cabinet size | 500x1000mm/500x500mm | MTBF(Mean time between failures) | 10000 hours |
| Cabinet resolution | 192x384 pixels/192x384 pixels | Working temperature | -20℃~ +65 ℃ |
| Weight | 14 KGS/9.5KGS | Humidity | 10% ~ 95% |
| Pixel density/sqm | 147456 pixels | Brightness control | 255 degree by software |
| IP rate | IP65 | Color Processing | (1024)×G(1024)×B(1024) |
| Power consumption/sqmt | Average:320W Maximun:800W | Control method | Synchronous/Asynchronous |
| Brightness/sqm | 4000-4500 nits | Software brand | Novastar, Huidu, Colorlight, Mooncell or Linsn |
| View Angle(H/N) | 160/160 |
Product Features
A. Completely dustproof and waterproof, with stable component performance even in extreme cold or heat.
B.Ultra-light and ultra-thin design, greatly reducing transportation and installation load.

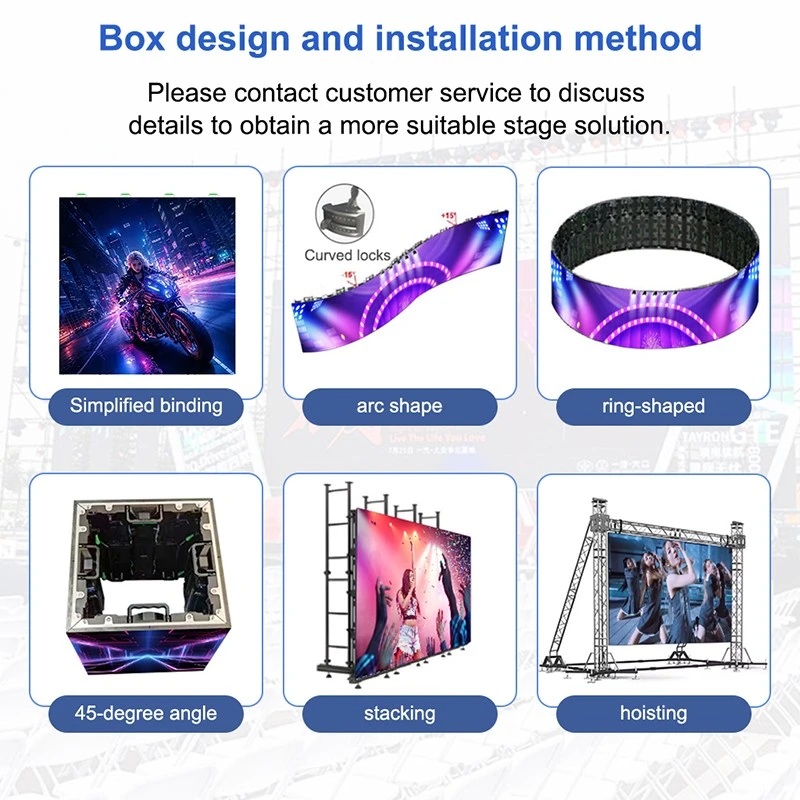

C. 500x500 / 500x1000 cabinets are fully compatible for connection in all directions (top, bottom, left, and right).
D. Straight-edge cabinets and curved cabinets can be directly connected without changing locks, improving assembly efficiency.
E. Reduces the risk of event interruptions. Even at a music festival with sudden heavy rain or an outdoor stadium under high temperatures, the screen will not blackout or short-circuit, protecting your brand reputation and avoiding high compensation costs.
F. Supports inner and outer arc cylindrical shape connections to meet creative requirements.
G. Far exceeds the scanning frequency of ordinary screens, with no motion blur in dynamic images and smooth color transitions.
Our Service
Production Process
Packing and shipping
LED screen control system
Cooperation
FAQ
How to identify LED display?
LED display is a flat-panel screen that uses an array of light-emitting diodes (LEDs) as pixels to produce images, video, and text. Unlike traditional displays like LCDs that require a separate backlight, each pixel on an LED screen is a tiny, self-illuminating light source.
What is the difference between indoor and outdoor LED screens?
Indoor screen have a lower brightness to be comfortable for close-up viewing and do not require extensive weather protection. Outdoor screen feature high brightness to combat sunlight and have a high IP (Ingress Protection) rating for waterproofing and dust resistance. It is built to withstand harsh environmental conditions.
What is pixel pitch?
The pixel pitch, measured in millimeters (e.g., P2.5, P1.2), is the distance from the center of one pixel to the center of the next. A smaller number means pixels are closer together, resulting in higher resolution.
What are the advantages of LED display?
Self-Emissive, High Brightness, Long Lifespan, Modular & Seamless, Fast Response Time.
How the led display work?
The core technology is based on the principle of electroluminescence.
A. Pixel Composition: Each pixel is made up of three sub-pixels: one red (R), one green (G), and one blue
B. Color Mixing: By precisely controlling the brightness of each of these three colored LEDs, the display can mix them to create millions of different colors, a concept known as the tri-chromatic principle.
C. Image Formation: Millions of these RGB pixels are arranged in a grid. A control system sends signals to each pixel, telling it what color and how bright to be, which collectively forms the complete image or video you see.
How long is the screen lifespan?
With normal maintenance: 5-10 years; for high-frequency rental scenarios: 3-5 years of stable display performance.
